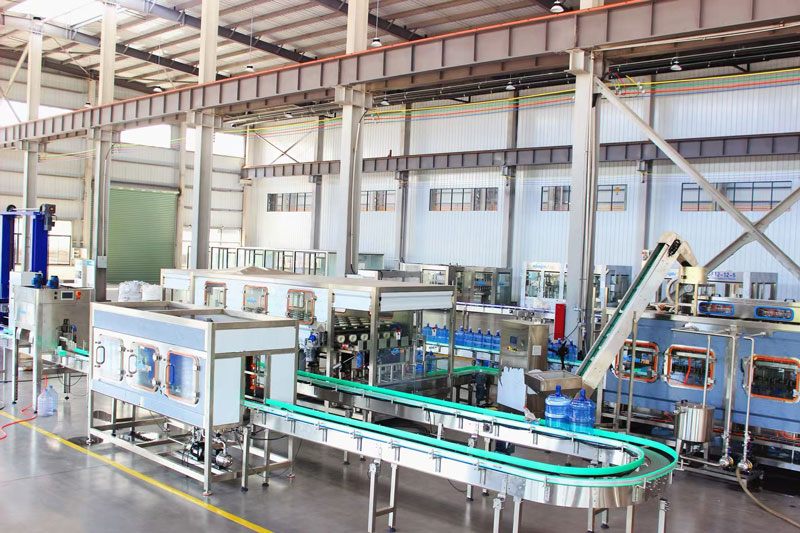

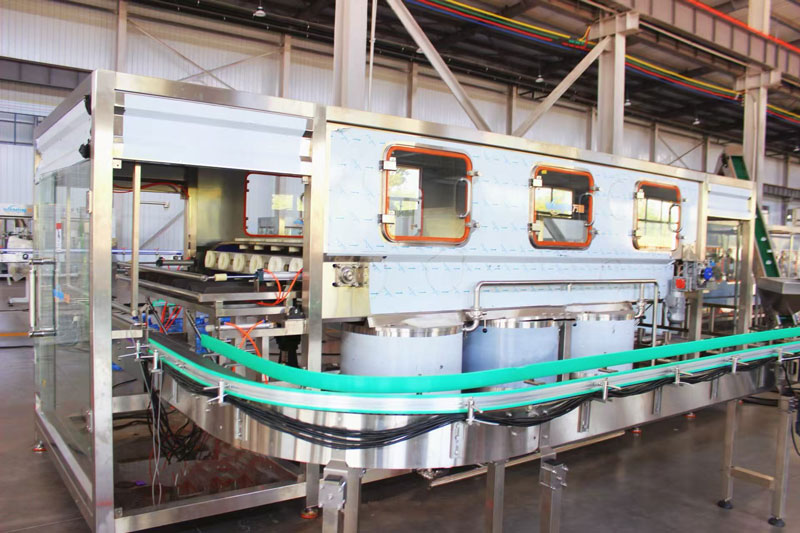

900-1200BPH 5 Gallon Filling Machine
QGF-900 barrel filling machine as the central facility is specially designed for 5 gallons barreled drinking water production line, which is ideal for production of mineral water, distilled water and purified water. The use of top quality stainless steel guarantees its high- performance resistance of corrosion and easiness of cleaning. With major electrical components coming from SIEMENS and OMRON, and original components for gas path imported f, combined with interior and exterior spray nozzles for cleaning barrels provided by know- how expertise of American spray companies, this machine is of compact design, high efficiency, accurate and sensitive response and high automation level to ensure its stability and reliability as an integrated (machine, electricity and gas) full-automatic barrel filling line.
Description
Barrel filling machine as the central facility is specially designed for 5 gallons barreled drinking water production line, which is ideal for production of mineral water, distilled water and purified water. The use of top quality stainless steel guarantees its high- performance resistance of corrosion and easiness of cleaning. With major electrical components coming from SIEMENS and OMRON, and original components for gas path imported f, combined with interior and exterior spray nozzles for cleaning barrels provided by know- how expertise of American spray companies, this machine is of compact design, high efficiency, accurate and sensitive response and high automation level to ensure its stability and reliability as an integrated (machine, electricity and gas) full-automatic barrel filling line.
| Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
|---|---|---|---|---|---|---|
| Filing heads | 1 | 2 | 3 | 4 | 6 | 8 |
| Volume (L) | 18.9 | |||||
| Barrel size (mm) | φ270×490 | |||||
| Capacity (b/h) | 100 | 300 | 450 | 600 | 900 | 1200 |
| Gas pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption (m³/min) | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| Motor power (kw) | 1.38 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
| Rated voltage (V) | 380V/50HZ | |||||
| Weight (kg) | 680 | 1500 | 2100 | 3000 | 3500 | 4500 |
Machine Details

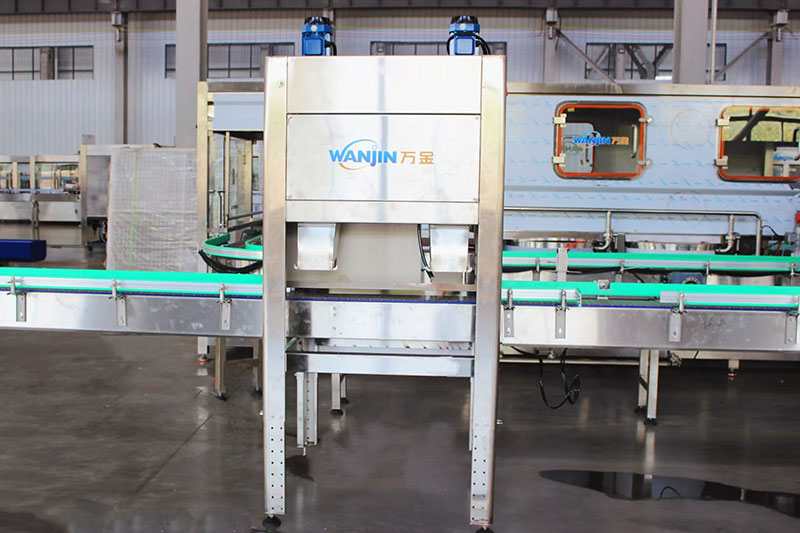

Capping machine
The capping machine is a specialized device used in 5-gallon water filling lines to automatically seal bottles with sterilized caps. It ensures a tight, hygienic, and leak-proof closure, improving production efficiency and product safety.

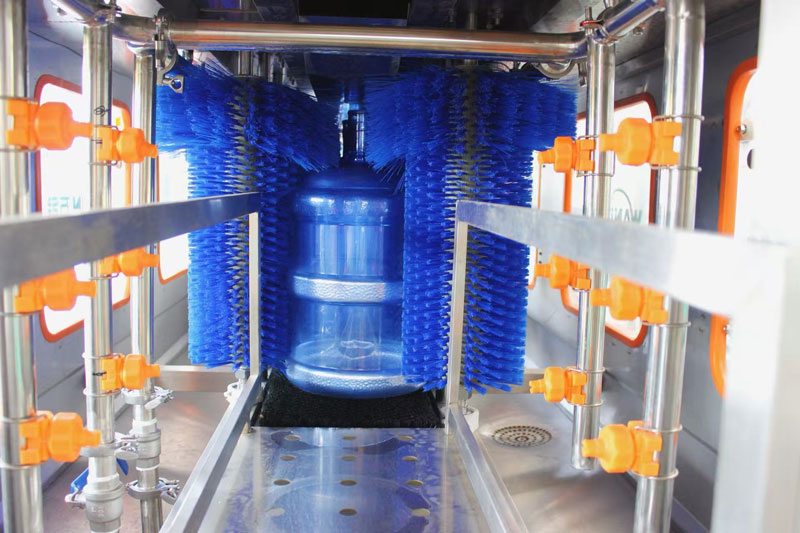

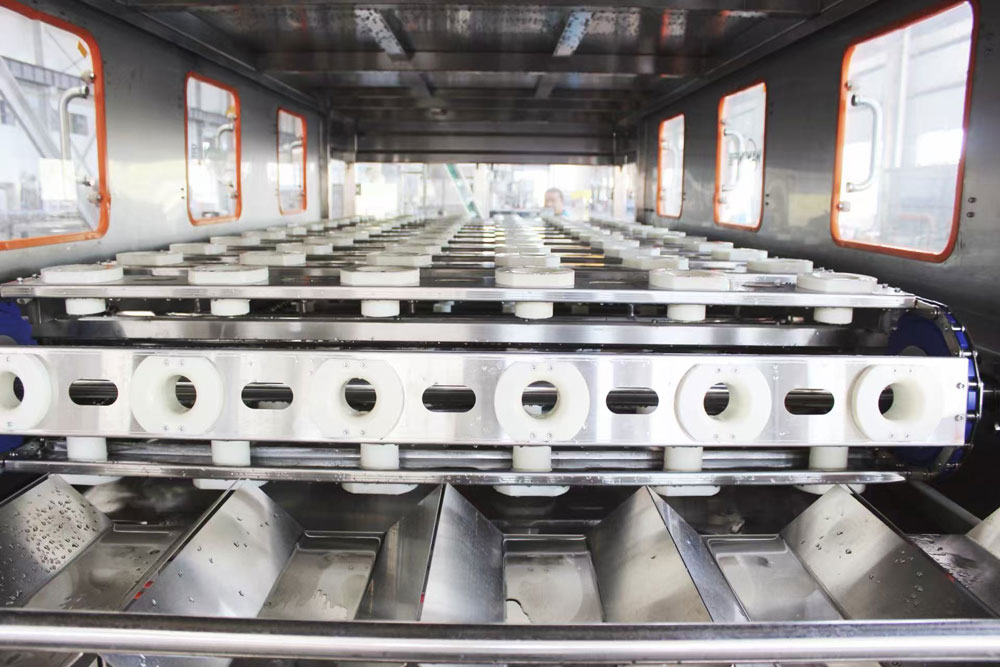

Barrel Rinser / Washer

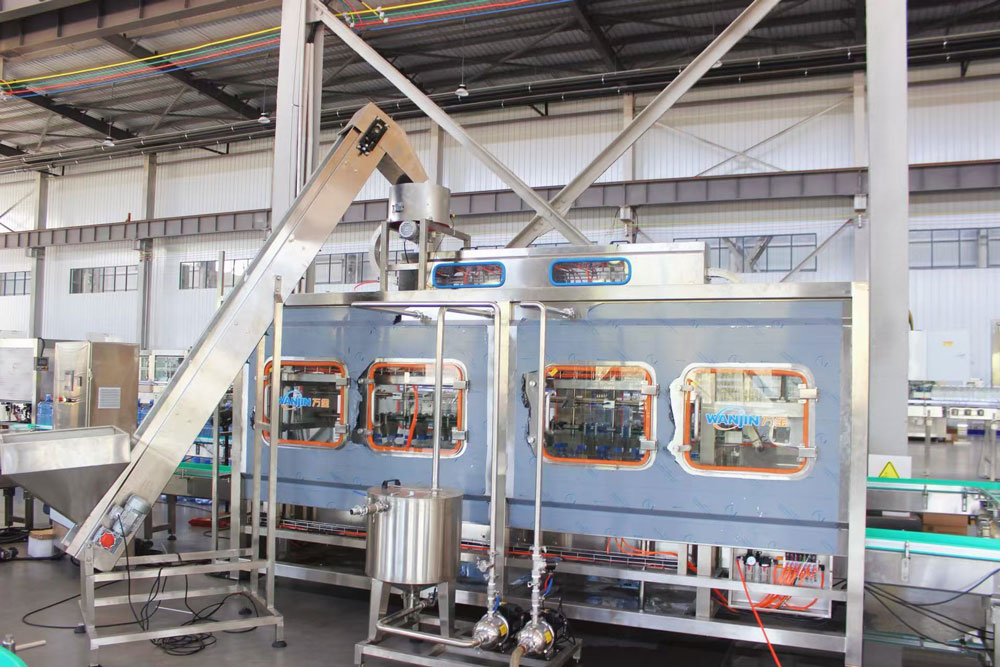

Filling Station
The filling station is the core unit of the 5-gallon water production line, designed to accurately and hygienically fill purified water into bottles. It ensures precise volume control, high production efficiency, and sanitary standards.

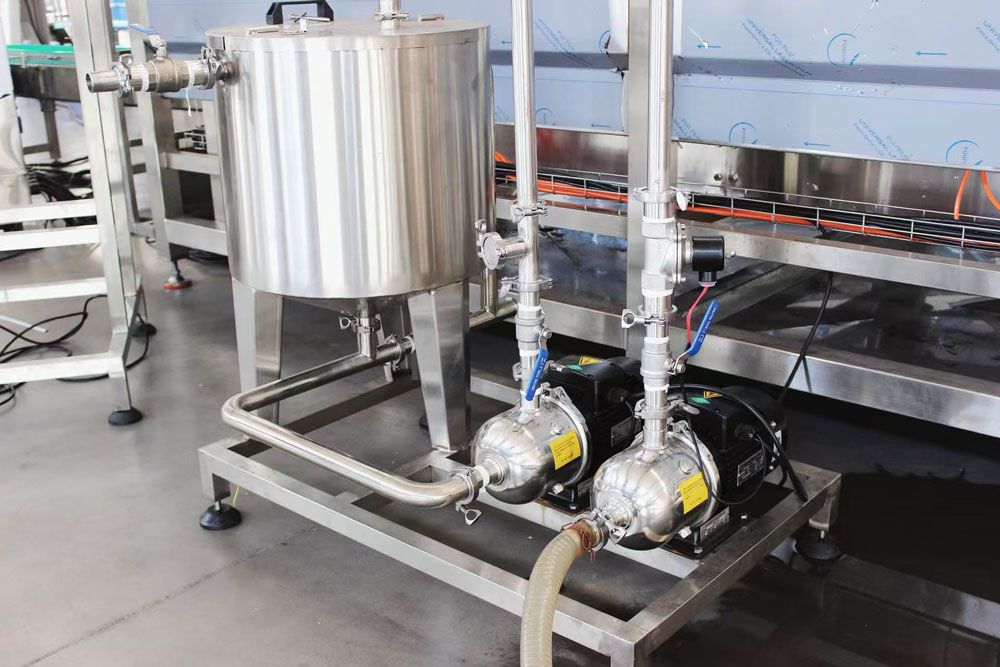

Capping Station
The capping station is an essential part of the 5-gallon water filling line, designed to automatically seal bottles with sterilized caps. It ensures secure, leak-proof, and hygienic closure, improving both product quality and production efficiency.

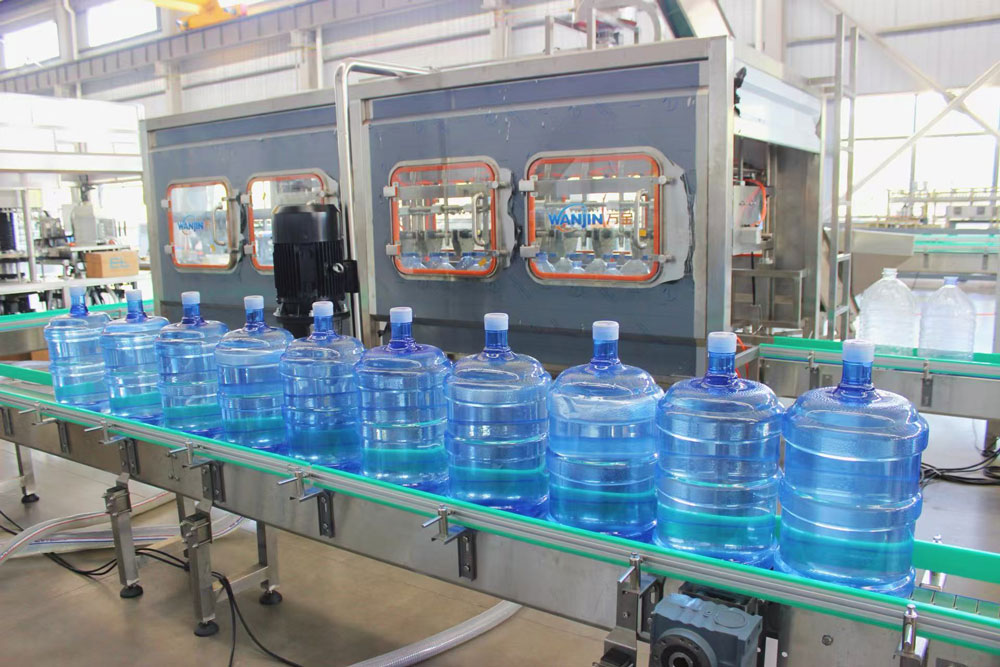

Conveyor & Output
The conveyor & output system is designed to connect all working stations of the 5-gallon water production line, including barrel loading, washing, filling, and capping. It ensures smooth transfer of bottles and efficient discharge of finished products.
