5000-6000BPH Water Filling Machine
Rated capacity: 5000-6000BPH for 500ML bottle
Filling liquid: pure water
Filling bottle type: PET bottle: Max diameter 96mm, Max height 310mm. It is for consulting, we will produce the machine according client’s bottle samples.
Filling type: gravity filling. Cap: Standard screw plastic cap, we will produce the machine according client’s cap samples.
Description
l. The rotary wheel is a fully stainless steel welded structure.
2. The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
4.All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
5.The rinser is driven by driving system positioned inside machine frame via gear transmission.
6. Transfer starwheel
7. Made of stainless steel of superior quality.
Technical Parameters

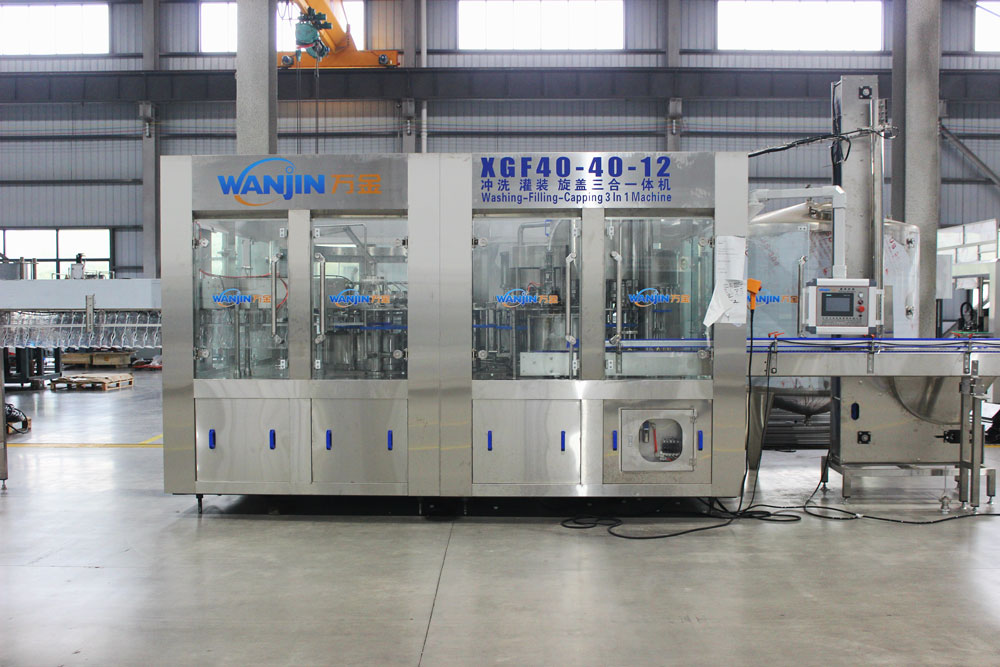

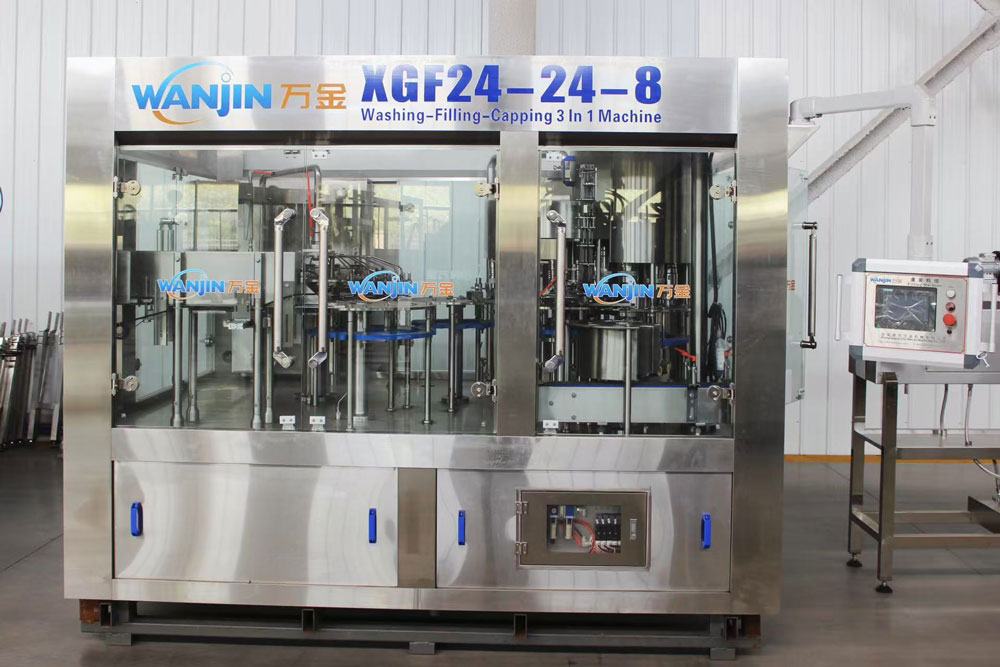

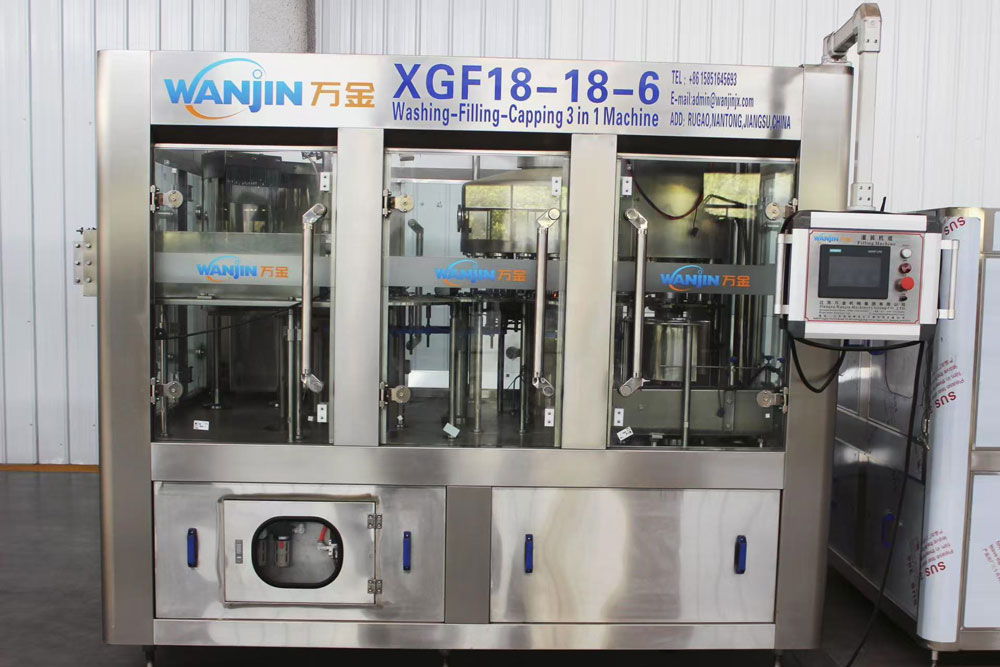

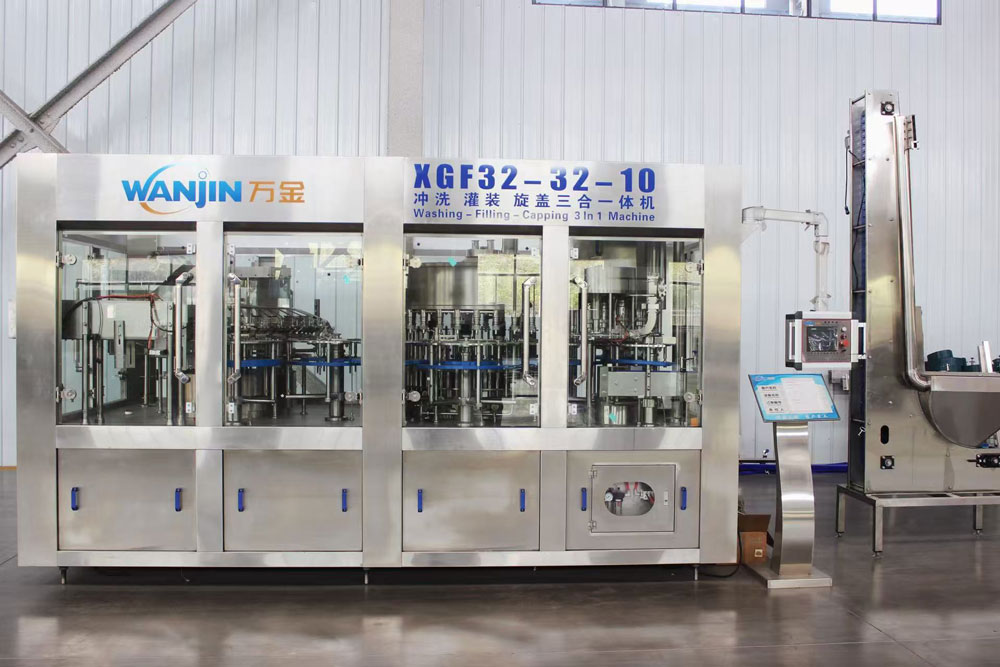

| Model | XGF14-12-5 | XGF18-18-6 | XGF24-24-8 | XGF32-32-10 | XGF40-40-12 | XGF50-50-15 / XGF60-60-15 |
|---|---|---|---|---|---|---|
| Number of rinsing head | 14 | 18 | 24 | 32 | 40 | 50 / 60 |
| Number of filling head | 12 | 18 | 24 | 32 | 40 | 50 / 60 |
| Number of capping head | 5 | 6 | 8 | 10 | 12 | 15 / 15 |
| (500ml) Rated production capacity (BPH) | 3000–4000 | 5000–6000 | 8000–12000 | 12000–15000 | 16000–20000 | 22000–28000 / 28000–32000 |
| Installed capacity (KW) | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.6 / 9.6 |
| Overall size (L×W×H mm) | 2200×1600×2300 | 2450×1900×2300 | 2750×2180×2400 | 4000×2300×2300 | 4550×2650×2300 | 5450×3210×2300 |
Machine Details
Washing part

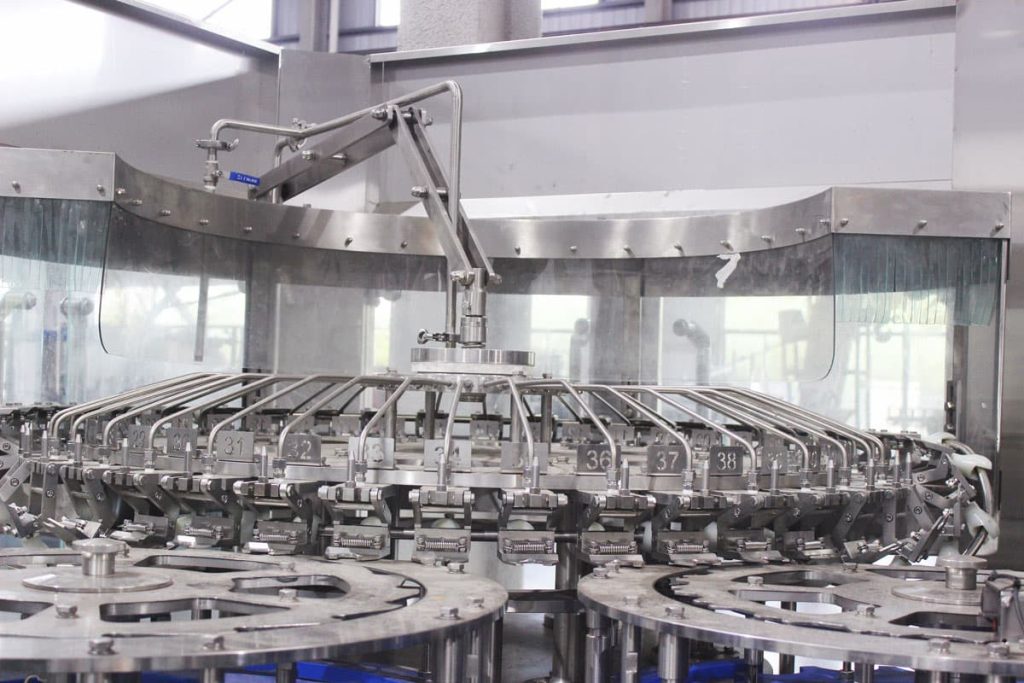

The washing part composes of bottle washing clamp, upper rotary plate, guide rail, water distributing plate, shield, water spraying device, water tray, etc
Bottle washing clamp rotates with the upper rotary plate, and open the bottle mouth clamp with elastic distortion when contacting the bottle feeding starwheel, which can clamp the bottleneck, then overturns at 180° along the guide rail, bottle mouth may become downwards for cleaning and drying the bottle with water. then overturn for 180°, bottle mouth becomes upwards and then conveyed with the starwheel; the shield can prevent sprinkling of cleaning water;
Filling part

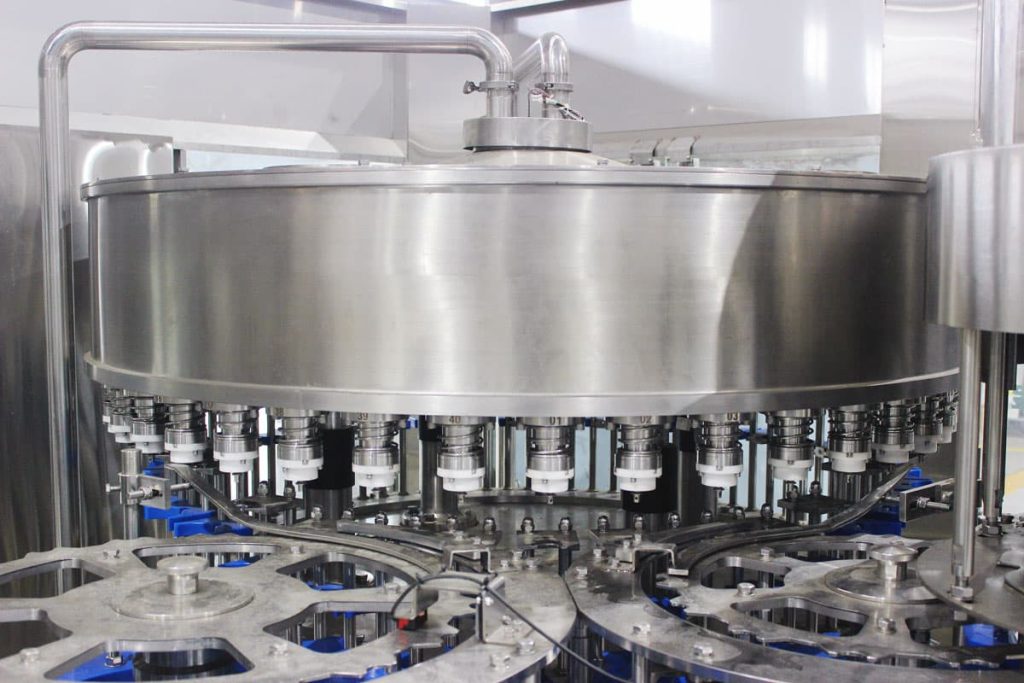

The filling part mainly composes of bottling barrel, bottling valve, guide rail, lifting device, bottle clamping lift device, etc.
The bottle is conveyed to the bottling machine with the clamp plate of starwheel drive bottling bottle clamp plate supports the bottleneck and rotates together with the bottling, and ascend along the guide rail and then open the bottling valve for bottling, after finishing bottling, it descends and use the bottling valve, bottling valve may automatically close. The bottle is discharged from the bottling machine along with the clamp plate of starwheel drive.
Capping part

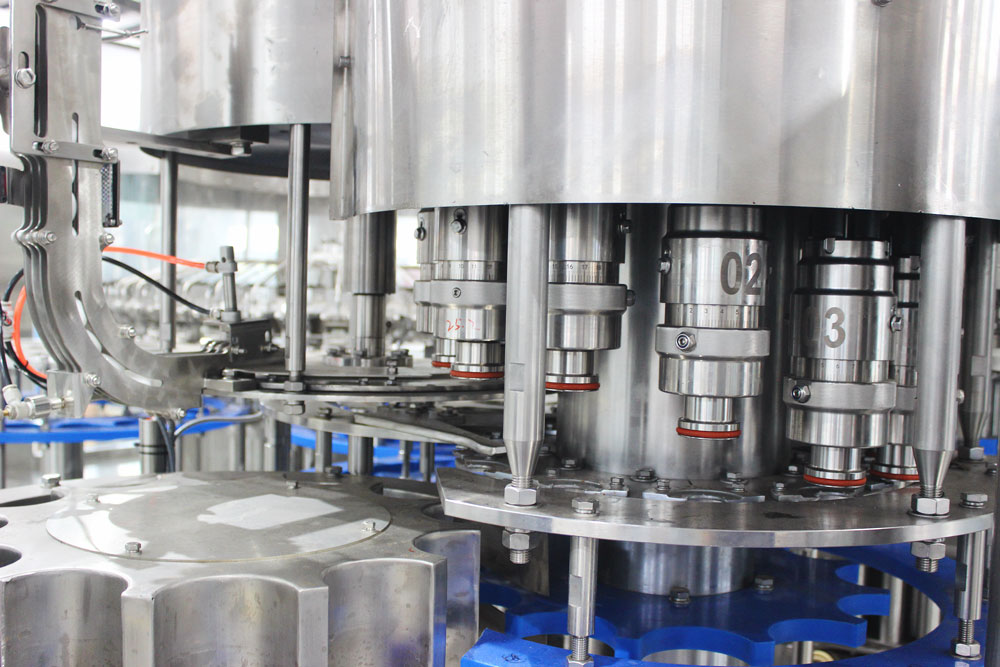

The capping unit automatically places sterilized caps onto bottles or barrels and presses them tightly to ensure leak-proof sealing. Equipped with UV or ozone sterilization, it prevents secondary contamination. The stable pressing system guarantees secure closure and integrates seamlessly with the rinsing and filling units.
