15000-18000BPH Water Filling Machine
Application: still water, pure water, RO water, mineral water, sparkling water, alcoholic drinks, wine, etc. Suitable for: PET bottles Filling system: gravity filling Production capacity: 5,000BPH – 24,000BPH (500ml)
Description
This automatic mineral water filling machine mainly used in the water filling operations, the three function of bottle washing, filling and capping are composed in one body of the machine, the whole process is automatic, it is conveniently turnked to adjust the machine to fill various types of bottles, the filling operation is faster and more stable due to the advanced filling valve technology, The famous brand programmed controller (PLC) is adopted to control the machine runs automatically. It is an ideal preferred equipment for beverage maker
Technical Parameters
| Model | XGF14-12-5 | XGF18-18-6 | XGF24-24-8 | XGF32-32-10 | XGF40-40-12 | XGF50-50-15 / XGF60-60-15 |
|---|---|---|---|---|---|---|
| Number of rinsing head | 14 | 18 | 24 | 32 | 40 | 50 / 60 |
| Number of filling head | 12 | 18 | 24 | 32 | 40 | 50 / 60 |
| Number of capping head | 5 | 6 | 8 | 10 | 12 | 15 / 15 |
| (500ml) Rated production capacity (BPH) | 3000–4000 | 5000–6000 | 8000–12000 | 12000–15000 | 16000–20000 | 22000–28000 / 28000–32000 |
| Installed capacity (KW) | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.6 / 9.6 |
| Overall size (L×W×H mm) | 2200×1600×2300 | 2450×1900×2300 | 2750×2180×2400 | 4000×2300×2300 | 4550×2650×2300 | 5450×3210×2300 |
Machine Details

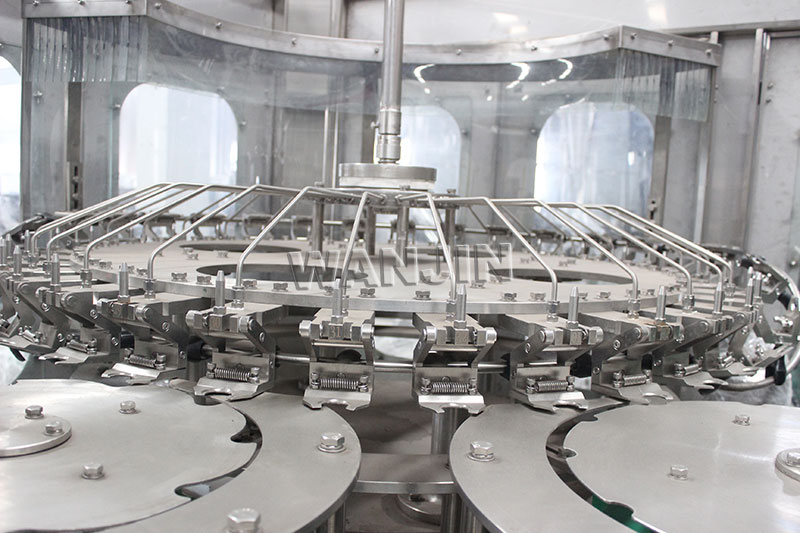

Washing part
The washing part composes of bottle washing clamp, upper rotary plate, guide rail, water distributing plate, shield, water spraying device, water tray, etc
Bottle washing clamp rotates with the upper rotary plate, and open the bottle mouth clamp with elastic distortion when contacting the bottle feeding starwheel, which can clamp the bottleneck, then overturns at 180° along the guide rail, bottle mouth may become downwards for cleaning and drying the bottle with water. then overturn for 180°, bottle mouth becomes upwards and then conveyed with the starwheel; the shield can prevent sprinkling of cleaning water;

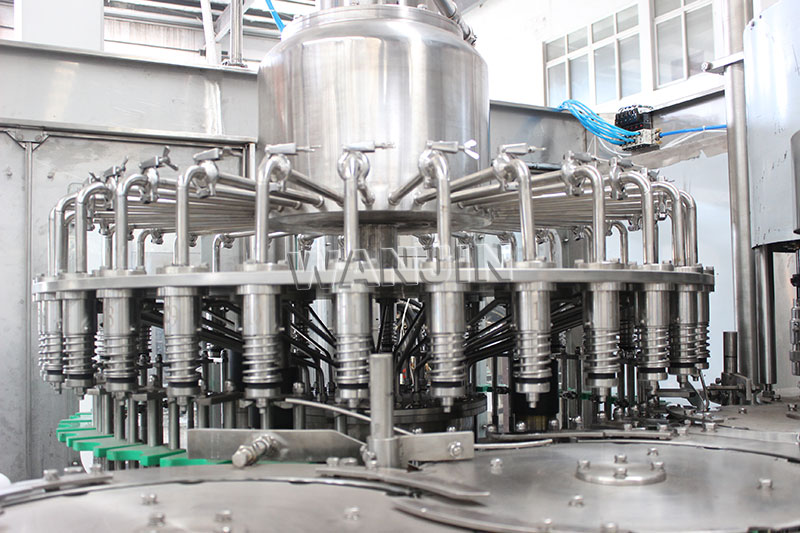

Filling part
The filling part mainly composes of bottling barrel, bottling valve, guide rail, lifting device, bottle clamping lift device, etc.
The bottle is conveyed to the bottling machine with the clamp plate of starwheel drive bottling bottle clamp plate supports the bottleneck and rotates together with the bottling, and ascend along the guide rail and then open the bottling valve for bottling, after finishing bottling, it descends and use the bottling valve, bottling valve may automatically close. The bottle is discharged from the bottling machine along with the clamp plate of starwheel drive.

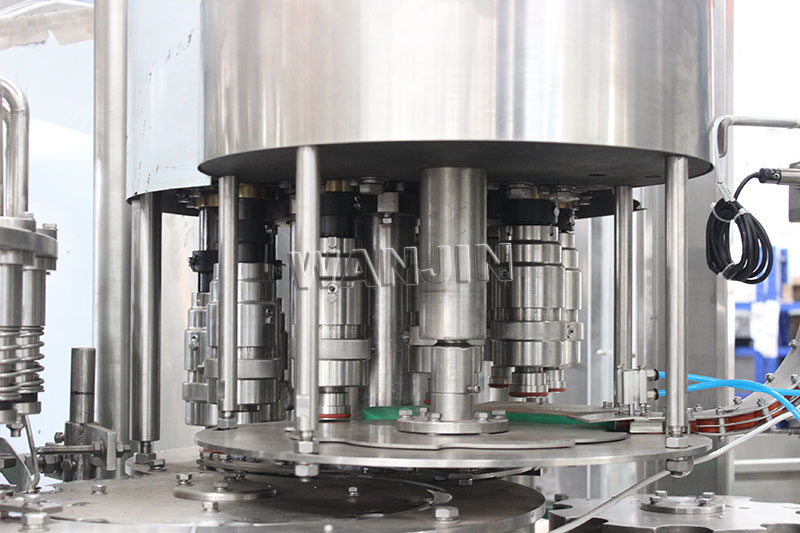

Capping part
The capping unit automatically places sterilized caps onto bottles or barrels and presses them tightly to ensure leak-proof sealing. Equipped with UV or ozone sterilization, it prevents secondary contamination. The stable pressing system guarantees secure closure and integrates seamlessly with the rinsing and filling units.
